Master Grãos | Grain Thresher

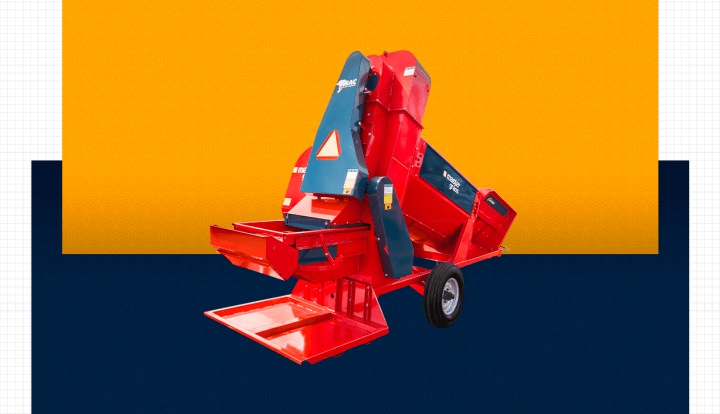

Master Grãos
Grain Thresher

Conilon coffee
threshing machine

Threshes grains such as peanuts, coffee, beans, and corn.

  • Practical operation with a simple adjustment.
  • High productivity with low maintenance cost.
  • It allows manual filling from both sides of the machine and access to the threshing cylinder through the side covers.

High threshing and cleaning efficiency as it is composed of an axial threshing cylinder, vibrating screens, and air suction.

Technical Characteristics

Technical Details

Model Master Grãos
Required engine power 75 cv
Coupling Drawbar
Activation PTO (540 rpm)
Required remote control valves AEMCO 5000 Series

Dimensions and Weight

Rotation of the Track cylinder 540 rpm
Diameter of the threshing cylinder 540 mm
Screen cleaning area 0,54 m²
Diameter of the suction turbine 700 mm
Rotation of the suction turbine 1334 rpm

Wheels

Total height 3.250 mm
Total length 5.670 mm
Overall width 2.010 mm
Gauge 1.650 mm
Weight 1.350 kg
Wheels 7,5 x 16"
