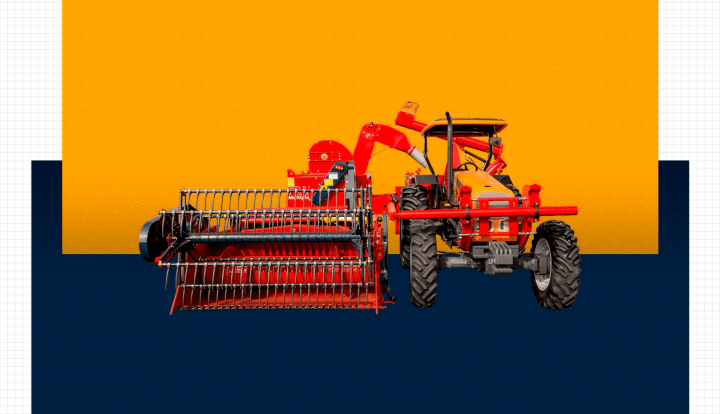

FZL Múltipla | Grain Harvester/Collector

FZL Múltipla
Grain Harvester/Collector

FZL Múltipla
Grain Harvester/Collector

Grain
Harvester/Collector

Three models with the same quality as the harvested beans.

  • MIAC puts this equipment on the market, developed to harvest 2 rows of corn with high-quality grains in the bulk carrier, that is, without breakages, without mechanical damage, and with incomparable cleanliness.
  • Changing the corn platform for the cutting platform, the same machine harvests beans or soybeans.
  • Substituting the cutting platform for the harvester, the FZL Multipla collects and threshes windrowed beans (up to 6 rows). Quality of the harvested product and versatility at the service of the producer.

 It has vertical articulation that provides better operation in the field to overcome irregularities in the terrain or roads.

It has 3 platforms that allow you to harvest different crops:

  • Platform of 2 rows of corn.
  • Bean collection platform (for raked beans).
  • Cutting platform (2.0 meters) for direct harvesting of beans and soybeans.
EXPAND IMAGE
SEE GALLERY

Technical Characteristics

Technical Details

Model FZL - Múltipla - Cereal Platform FZL - Múltipla - Bean Platform FZL - Múltipla - Corn Platform
Required engine power 70 to 80 cv 70 to 80 cv 70 to 80 cv
Coupling 3rd front point 3rd front point 3rd front point
Activation PTO PTO PTO
Required remote control valves 2 2 2

Collection Unit

Support system Hydraulic Piston Hydraulic Piston Hydraulic Piston
Working width 2.368 mm 1.300 mm 2 lines (adjustable from 70 to 90 cm)

Track and Separation System

Track screen hole diameters (concave) 20 mm 20 mm 20 mm
Working rotation 540 rpm 540 rpm 540 rpm

Cleaning System

Main screen cleaning area 1.00 m² 1.00 m² 1.00 m²
Vibrating screen hole diameter 3/16" 3/16" 3/16"
Diameter of the holes in the separating screen 18 mm 18 mm 18 mm
Airflow Adjustable Adjustable Adjustable

Storage System

Grain elevator 1 1 1
Quantity and types of cups 24 polyethylene 24 polyethylene 24 polyethylene
Fixing the cups 1 center chain 1 center chain 1 center chain
Bulk carrier capacity 20 bags of 50 kg 20 bags of 50 kg 20 bags of 50 kg

Dimensions and Weight

Unloading height 3.200 mm 3.200 mm 3.200 mm
Length 6.000 mm 6.000 mm 6.000 mm
Shipping length 8.000 mm 8.000 mm 8.000 mm
Working width (including tractor) 5.126 mm 4.100 mm 4.100 mm
Transport width 2.500 mm 2.500 mm 2.500 mm
Weight 2.370 kg 2.370 kg 2.370 kg
Wheels 750 x 16" 750 x 16" 750 x 16"
