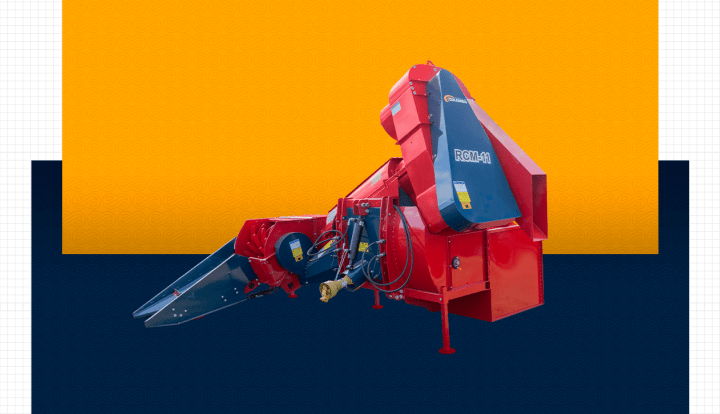

RCM 11 | Corn Harvester

RCM 11
Corn Harvester

RCM 11
Corn Harvester

Harvester/Grain
Harvester

Superior quality of harvested grains.

  • Versatility in operation (bagging machine and bulk carrier).
  • Grain clean and without breakage.
  • High productivity (30 to 35 bags/h).
  • Easy adjustment.
  • Low maintenance cost.
  • Axial threshing cylinder and cleaning system composed of vibrating screens and suction turbine.

Technical Characteristics

Technical Details

Model RCM - 11 - Corn Bulk Container RCM - 11 - Corn Bagging Machine RCM - 11 - Beans Bagging Machine
Required engine power 65 to 75 cv 65 to 75 cv 65 to 75 cv
Coupling/activation 33rd point/PTO (540 rpm) 3rd point/PTO (540 rpm) 3rd point/PTO (540 rpm)
Required remote control valves 1 1 1
Vibrating screen hole 3/16" 3/16" 3/16"
Flow screen hole 20 mm 20 mm 20 mm
Cleaning turbine rotation 1.700 rpm 1.700 rpm 1.700 rpm
Usable width of the bean harvester - - 800 mm

Dimensions and Weight

Height 2.679 mm 2.456 mm 2.660 mm
Width in working position 4.535 mm 3.440 mm 3.440 mm
Width in transport position 3.440 mm 3.440 mm 3.440 mm
Length 2.929 mm 2.973 mm 2.725 mm
Bulk carrier capacity 6 bags of 50 kg - -
Weight 1.200 kg 1.020 kg 1.020 kg
