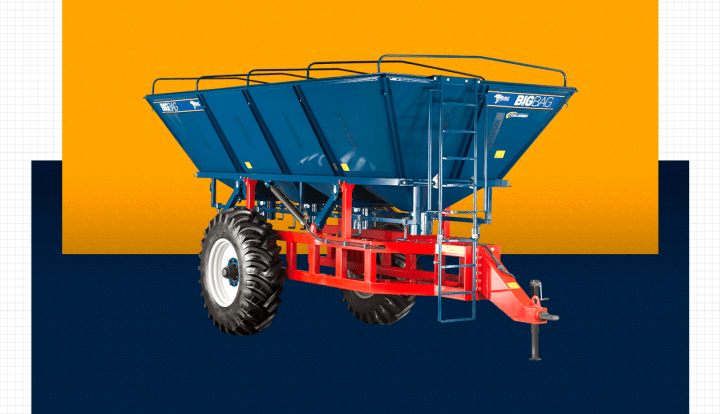

Big Bag IV
Bulk Wagon

Bulk
Wagon

Packing grain in bags in the field facilitates harvesting and optimizes labor.

  • It has 4 spouts with an opening and closing system by actuating a lever, allowing the unloading of grains by gravity, avoiding friction and mechanical damage.
  • Agility at harvest time and consequent gain in work capacity.
  • It uses the hydraulic system to raise and lower its structure, taking advantage of the unloading height of all grain Collectors and harvesters.
EXPAND IMAGE
SEE GALLERY

Know the
Big Bag IV

WATCH VÍDEO

Technical Characteristics

Technical Details

Model Big Bag IV
Required engine power 90 - 100 cv
Coupling Drawbar
Required remote control valves 1

Storage system

Chassis lifting system Hydraulic tube/cylinder
Quantity of spouts 4
Unloading system Gravity
Battery capacity 8.000 kg

Dimensions and Weight

Height 3.000 mm
Total height 3.250 mm
Width 2.610 mm
Length 6.905 mm
Gauge 2.020 mm
Wheels 18.4 x 30"
Weight 2.350 kg
