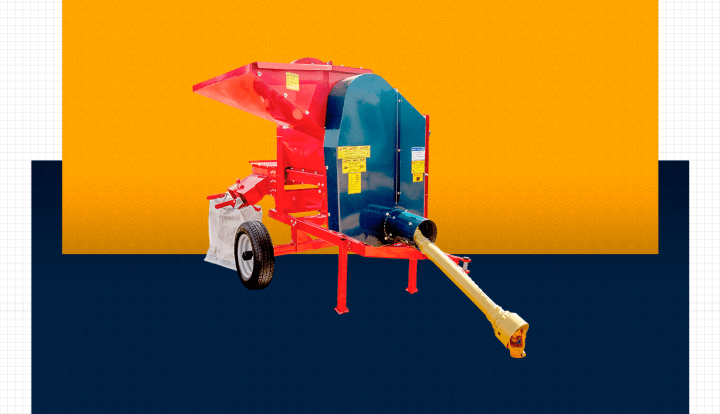

TD MAX | Grain Thresher

TD MAX
Grain Thresher

Grain
Thresher

They thresh, clean and bag rice, beans, soybeans, and dry corn on the cob.

  • Vibrating screen covering the entire length of the threshing cylinder (greater cleaning area).
  • Turbines with Airflow regulation and independent of the threshing cylinder, allow to reach higher rotations in the turbine (better grain cleaning and less losses).
  • Designed and manufactured with high-quality components that offer high strength and durability.
  • Easy operation and maintenance.

Technical Characteristics

Technical Details

Model TD Max
Required engine power 50 cv
Coupling Lower Arms of the 3-point engineering system
Activation PTO (540 rpm)
Cardan 2500 Series
Work rotation (PTO) 540 rpm
Track cylinder rotation 880 rpm
Suction turbine rotation 1.675 rpm
Beater cylinder diameter 400 mm
Turbine diameter 400 mm
Cleaning area 0,95 m²

Dimensions and Weight

Total height 2.040 mm
Total length 2.740 mm
Overall width 2.040 mm
Weight 740 kg
Wheels 165 / 70 R13
