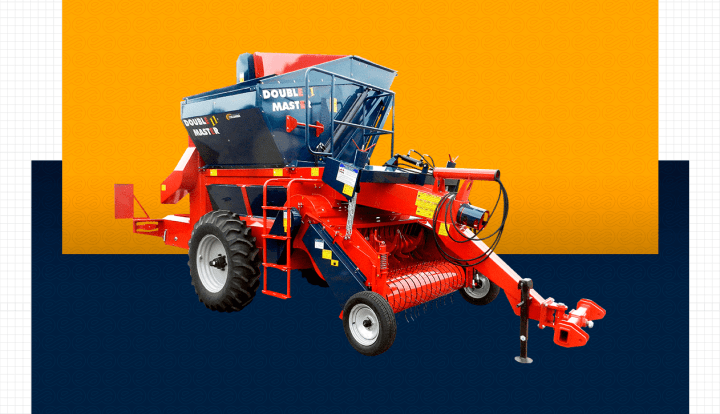

Double Master II | Bean Harvest Combine

Double Master II
Bean Harvest Combine

Bean Collectors
Thresher

Quality assurance in bean harvesting.

  • Collector platform with flexible fingers, supported on wheels that follow the irregularities of the ground.
  • The axial threshing system (Low Impact Axial Flow) has threshing intensity and time regulation, allowing the bean harvest in a wide humidity condition, from 40% to the driest, without compromising the quality of the grains.
  • The cleaning system consists of vibrating screens and a turbine that works by suction, providing excellent quality of the harvested grains.
  • Transport to the grain tank made by buckets and unloading by tipping. Everything to avoid mechanical damage and "blocking" of the beans.
  • Effective work capacity between 1.2 and 1.5 ha/h depending on the topography and productivity of the crop.

Know the
Double Master II

Technical Characteristics

Technical Details

Model Double Master II - Beans (2018)
Required engine power 110 cv / 82 kW
Coupling 3-point hitch Lower Arms
Activation PTO (540 rpm)
Required remote control valves 2
Required flow 45 ℓ/h
Cardan AEMCO – 6.000 Series

Collection Unit

Support system Springs
Working width 1.800 mm
Pick-up finger type Flexible with rubber base
Support wheel tire 165 / 70  R13



Track and Separation System

Beater cylinder diameter 600 mm
Beater cylinder length 2.700 mm
Working rotation 540 rpm
Track screen hole diameter (concave) 20 mm

Cleaning System

Main screen cleaning area 2,36 m²
Vibrating screen hole diameter 4,70  mm
Airflow Adjustable
Turbine diameter 700 mm

Storage System

Grain elevator 1
Quantity and type of cups 43/polyethylene
Fixing the cups Centralized chain
Bulk carrier capacity 3.000 kg



Dimensions and Weight

A- Unloading height 3.160 mm
B- Transport height 3.540 mm
C - Working height 4.040 mm
D- Length 6.720 mm
E - Maximum width 2.470 mm
F- Gauge 2.370 mm
Weight 3.750 kg
Wheels 14.9 x 28"
