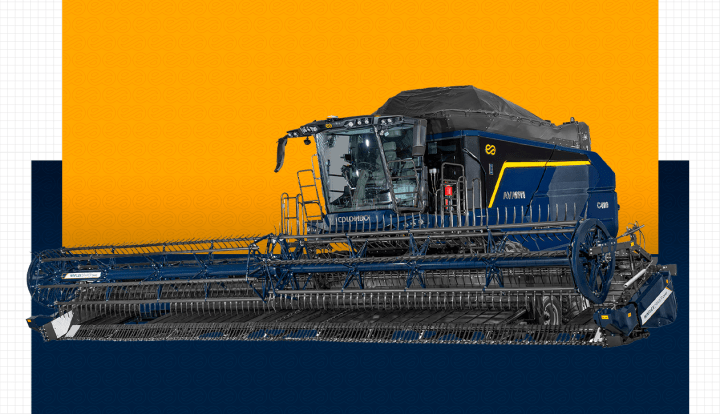

Avanti + Winflex Draper Platform
Grain Harvester/Collector

THE NEXT STEP IN GRAIN AND SEED HARVESTING

Agricultural automation, higher harvest performance and cleaning efficiency, excellence in grain and seed quality, operational versatility with MULTICROP® – Peanut, Bean, Soy, and Corn.

  • PREMIUM CAB: Best cabin on the market, superior ergonomics, high visibility, low noise, air conditioning.
  • DIGITAL MONITORING: Monitor with AG CAM indicators, enhanced real-time harvest management, real-time operational management, operational information management, maintenance, and precision farming.
  • TURBINES: Better airflow and cleaning, reduced maintenance time, and ease of servicing.
  • SOFT FLOW – AVANTI HARVESTING SYSTEM: Superior grain and seed quality, increased processing capacity, MULTICROP configurations.
  • TRANSPORT SYSTEM: Improved transport and logistics agility, conveyor belt, reduced grain damage.
  • SENSORS (NEW): Faster soil reading (ground tracker) and better slope reading.
  • BEAN PLATFORM: Higher collection capacity, pantographic system.
  • CHOPPER: New choppers equipped with knives/counter-knives.
EXPAND IMAGE
SEE GALLERY

Technical Characteristics

Technical Details

MODEL WINFLEX DRAPER CW40
Coupling Equipment Self-propelled Harvester
Cutting System Flexible Cutting Bar
Cutting Blades 3"
Cutting Drive System Knife Box
Drive Mechanical

Reel

MODEL WINFLEX DRAPER CW40
*Speed 1 to 160 rpm
Reel Drive Hydraulic
Finger Type Flexible
Number of Fingers per Bar 43 fingers
Number of Bars 12 bars



* Velocidade pode variar em função da colhedora que a plataforma será acoplada.

Dimensions and Weight

MODEL AVANTI HARVESTER
Length without platform 8,800 mm
Width without platform 4,500 mm
Total height 5,000 mm
Weight without platform 18,000 kg
MODEL WINFLEX DRAPER CW40
Height 2,100 mm
Equipment width 12,800 mm
Working width 12,000 mm
Weight 5,200 kg

Feeding System (Considered Feeder)

MODEL AVANTI HARVESTER
Feeding system type Chain + rubber slats
Speed Variable
Reversal system Yes
Width 1772 mm (feeder)

Threshing System

MODEL AVANTI HARVESTER
System Low Impact Axial Flow
Number of Rotors 2
Length 4157 mm
Rotor Diameter 298 mm
Speed (rpm) Variable
Reversal System Yes
Concave Type Peanut - Corn - Soy - Beans

Separation Screen - Vibrating Screen

MODEL AVANTI HARVESTER
Screen Area - Vibrating 4 m² per screen - total 8 m²
Length - Vibrating 4157 mm
Width - Vibrating 980 mm per screen - total 1960 mm
Perforation Peanuts (shell) - Shell + Ø5 mm (grains)

Suction Fan

MODEL AVANTI HARVESTER
Rotation Speed (rpm) Variable
Number of Fans - Diameter 2 - 680 mm

Flow Sieve

MODEL AVANTI HARVESTER
Flow Screen Area 0.8 m² per screen - total 1.6 m²
Length 792 mm
Width 976 mm per screen - total 1952 mm
Hole Size 50x60 mm (peanut) / Ø18 (corn) / Ø14 and 8x30 (soybean) / Ø18 and 10x30 (bean)

Bucket Elevator

MODEL AVANTI HARVESTER
Number of elevators 2
Number of buckets 42 per elevator
Rotation speed (rpm) Variable

Grain Silo

MODEL AVANTI HARVESTER
Capacity (L) 11,000 Liters
Discharge Auger Length 7 meters
Discharge System Side Discharge
Speed Variable

Engine

MODEL AVANTI HARVESTER AVANTI HARVESTER
Brand / Model Cummins - QSL 9 John Deere - 6090Cl550
Number of Cylinders 6 6
Rated Power 366 hp - 2100 rpm 375 hp - 2200 rpm
Maximum Power 403 hp - 1900 rpm 413 hp - 2000 rpm
Maximum Torque 1574 N.m - 1500 rpm 1671 N.m - 1600 rpm

Transmission System and Shaft

MODEL AVANTI HARVESTER
Type Claas
Number of Gears 3 (rabbit and turtle, totaling 6)
Speed Range (km/h) 0 - 35 km/h
